データシート
高電力抵抗
Power Film, SMD
| Type | Style | Power (Watts) |
Res. Range (ohms) |
Tol.(%) | Photo | ||
|---|---|---|---|---|---|---|---|
| Power Film, SMD |

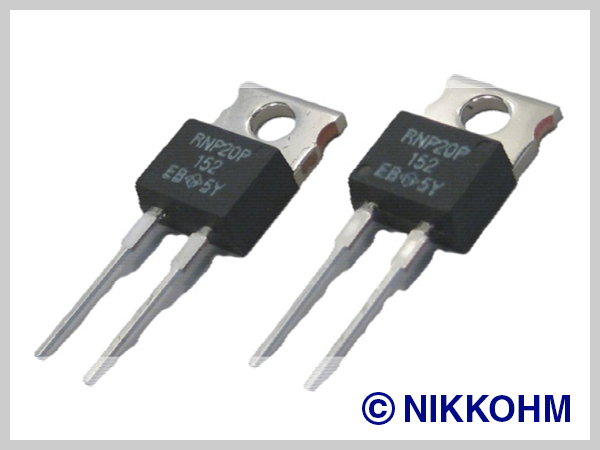

RNP-45 | TO252 | 45 | 0.02-510k | 5% |  |
 |
| RNP-20D | TO263 | 35 | 0.02-510k | 1%, 5% |  |
|
|

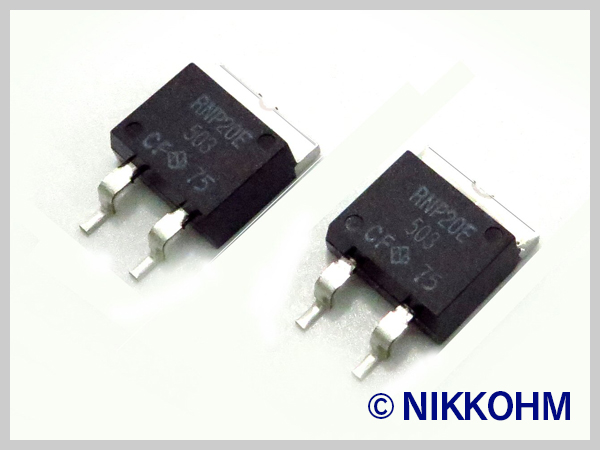

| RNP-20E | TO263 | 35 | 0.02-510k | 1%, 5% |  |
|
|
| RNP-20F | TO263 | 35 | 0.02-510k | 1%, 5% | |
|
|

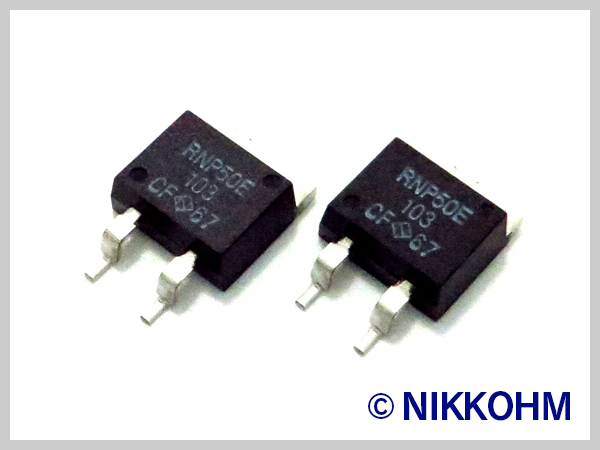

| RNP-50E | TO263 | 50 | 0.02-510k | 1%, 5% |  |
|
|

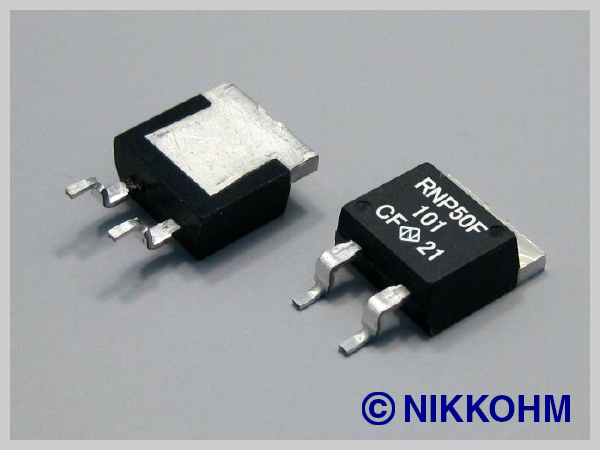

| RNP-50F | TO263 | 50 | 0.02-510k | 1%, 5% |  |
|
|

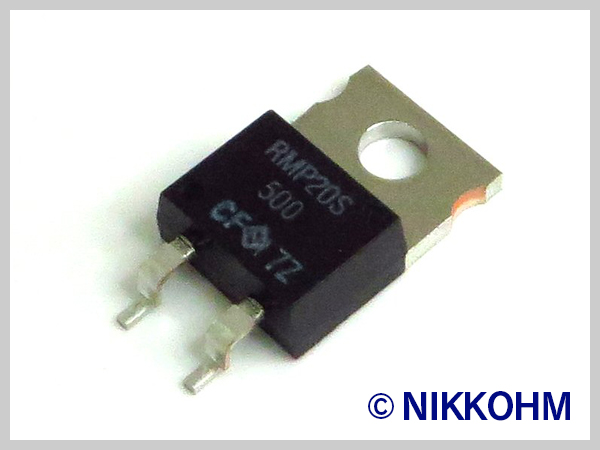

| RMP-20S | TO220 | 35 | 0.02-510k | 1%, 5% |  |
|
|

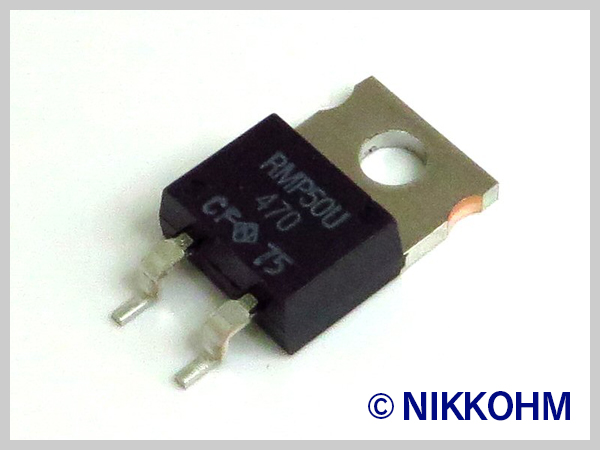

| RMP-50U | TO220 | 50 | 0.02-510k | 1%, 5% |  |
|
Power Film, TH
| Type | Style | Power (Watts) |
Res. Range (ohms) |
Tol.(%) | Photo | ||
|---|---|---|---|---|---|---|---|
| Power Film, TH |
RNP-10S |

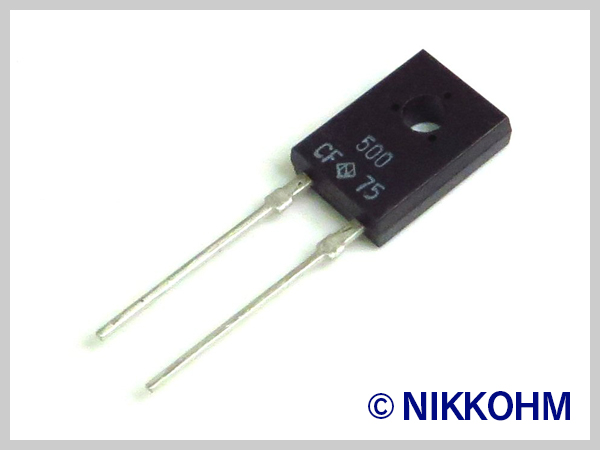

TO126 | 20 | 0.02-510k | 1%, 5% |  |
|

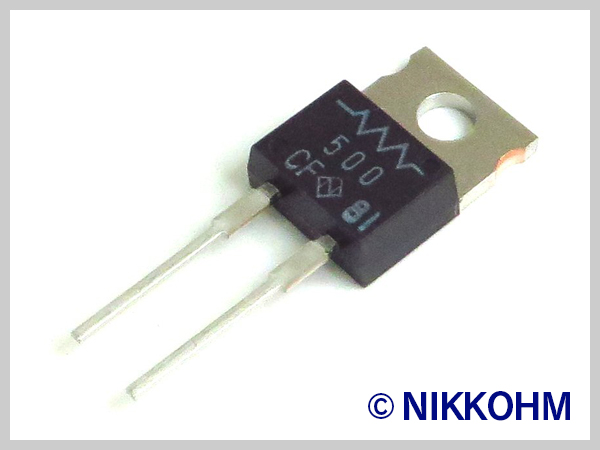

RNP-10 |
TO220 | 20 | 0.02-510k | 1%, 5% |  |
|
|
RNP-20S |

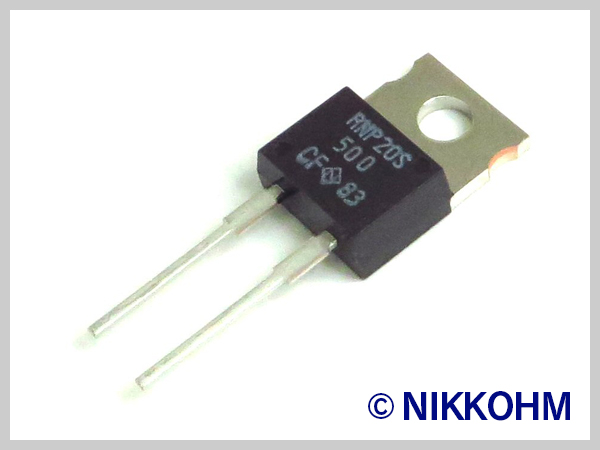

TO220 | 35 | 0.02-510k | 1%, 5% |  |
|
|
RNP-50U |

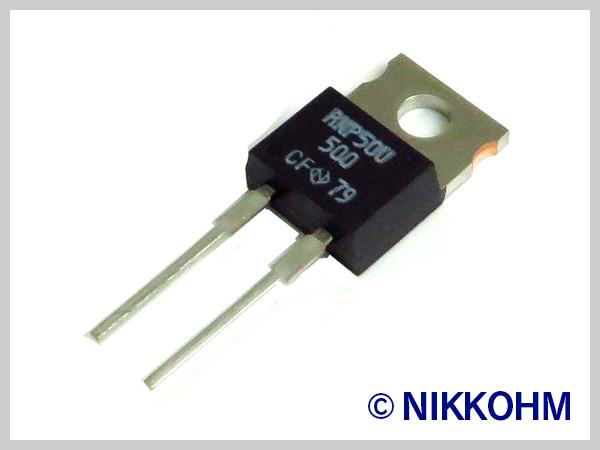

TO220 | 50 | 0.02-510k | 1%, 5% |  |
|
|

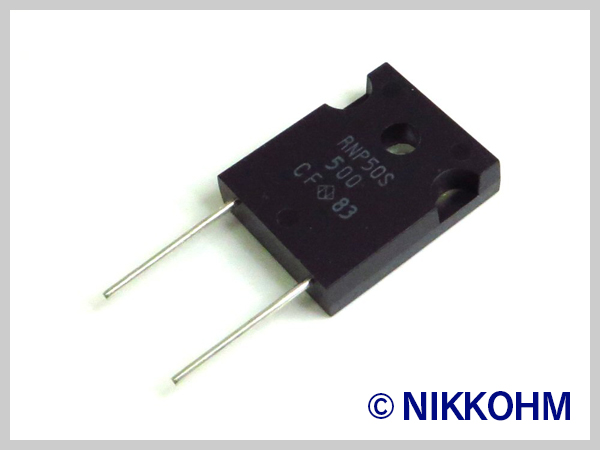

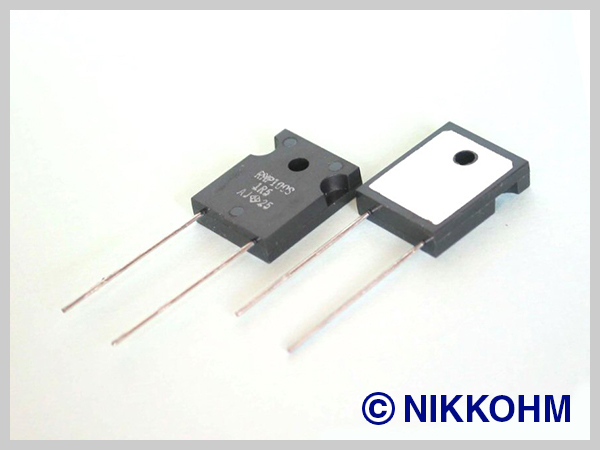

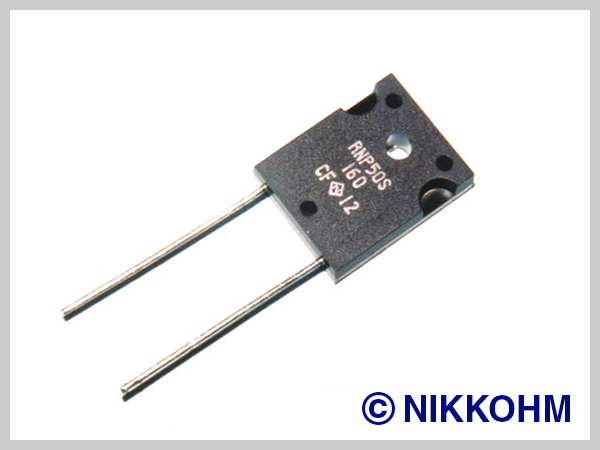

RNP-50S |
TO247 | 100 | 0.02-510k | 1%, 5% |  |
|
|

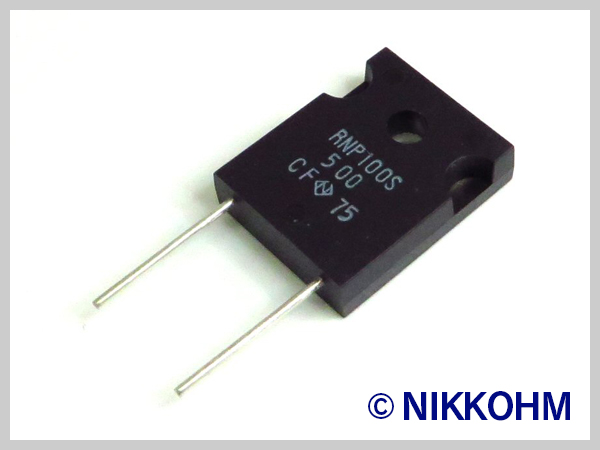

RNP-100S |
TO247 | 140 | 0.02-510k | 1%, 5% |  |
|
|
RNP-100U |

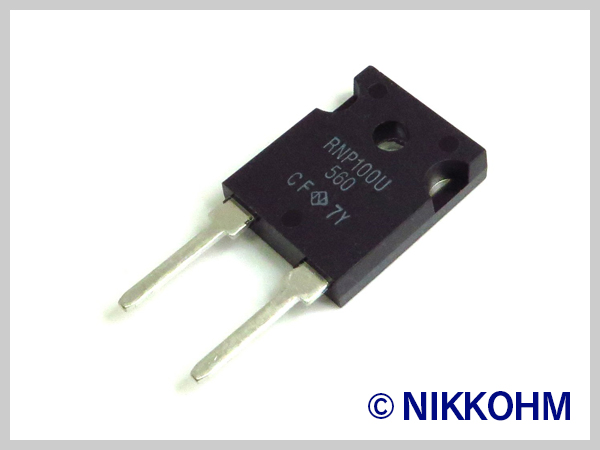

TO247 | 100 | 0.02-510k | 1%, 5% |  |
|
|
RNP-140U |

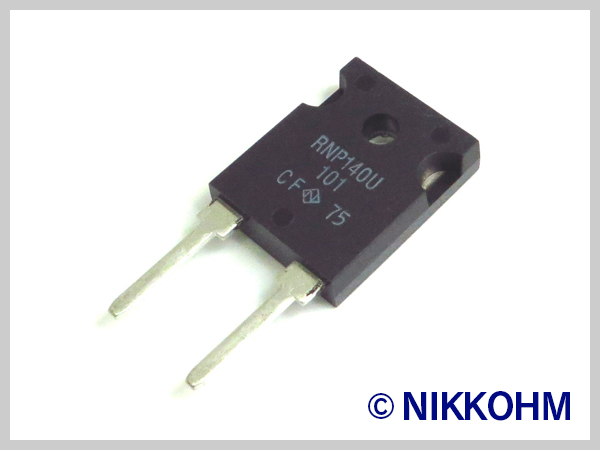

TO247 | 140 | 0.02-510k | 1%, 5% |  |
|
Power Film, SOT227
| Type | Style | Power (Watts) |
Res. Range (ohms) |
Tol.(%) | Photo | ||
|---|---|---|---|---|---|---|---|
| Power Film, SOT227 |
RPM150 | SOT227 | 150 | 0.02-100k | 5% |  |
|

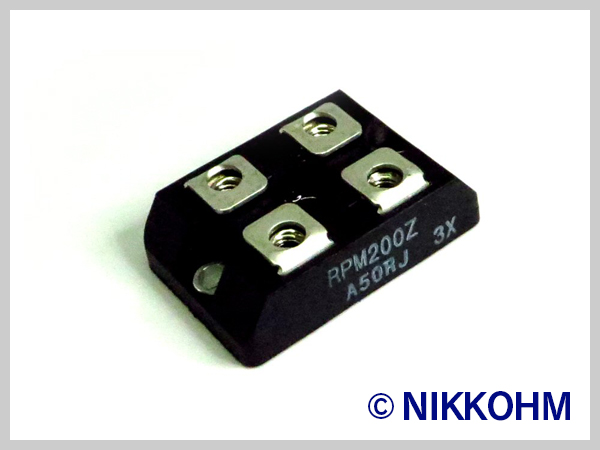

| RPM200 | SOT227 | 200 | 0.02-100k | 5% | |
|
|
| RPM250 | SOT227 | 250 | 0.02-100k | 5% |  |
|
|

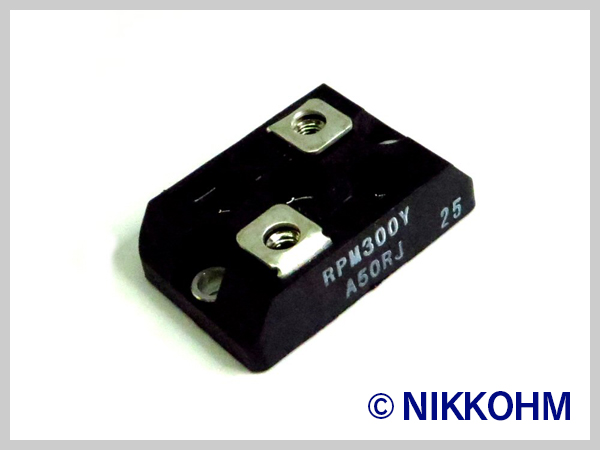

| RPM300 | SOT227 | 300 | 0.02-100k | 5% | |
|
|
| RPM550 | SOT227 | 550 | 50-1k | 5% |  |
|
|

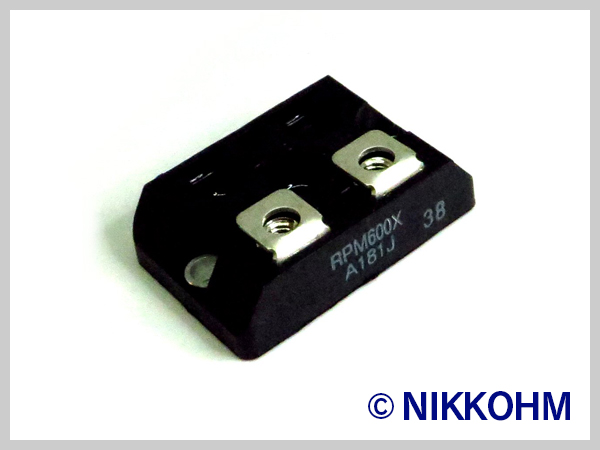

| RPM600 | SOT227 | 600 | 50-1k | 5% | |
|
|

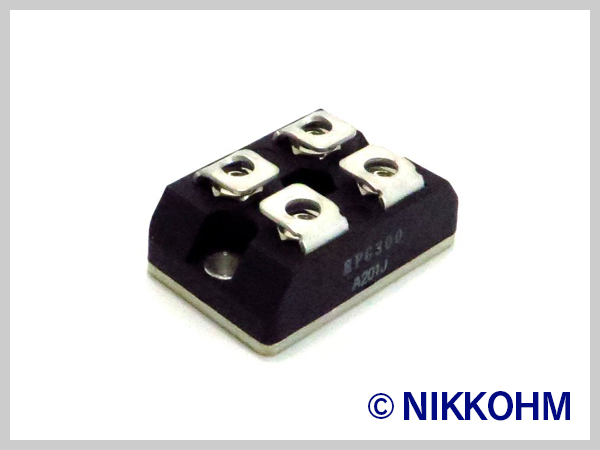

| RPG300 | SOT227 | 300 | 0.02-100k | 5% |  |
|
|

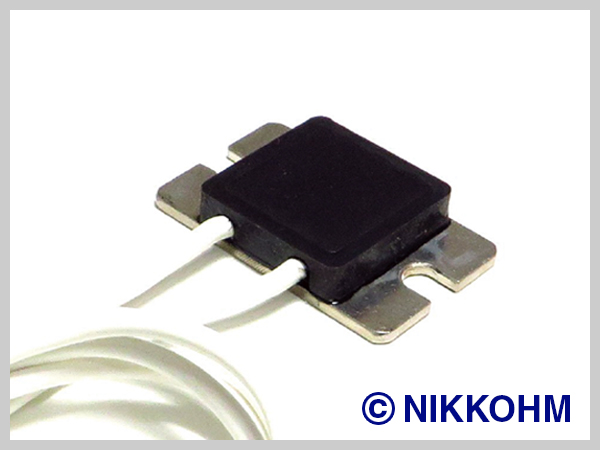

| RPL100 | --- | 100 | 0.1-51k | 5% |  |
|
|

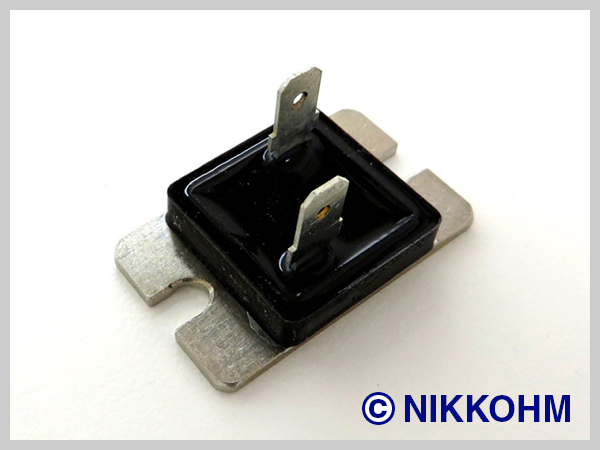

| RPL100F | --- | 100 | 0.1-51k | 5% |  |
|
|

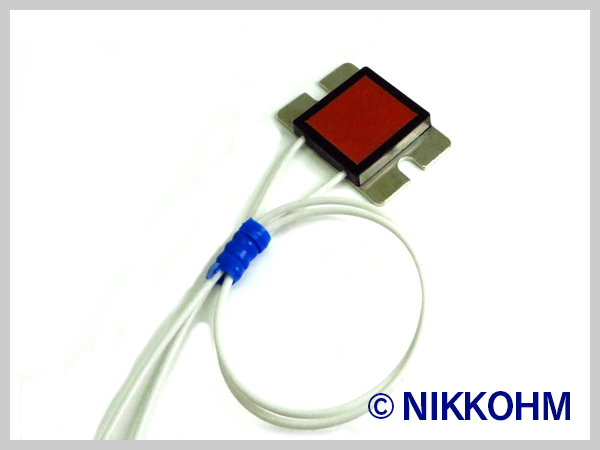

| RPL320 | --- | 300 | 0.1-51k | 5% |  |
|
|

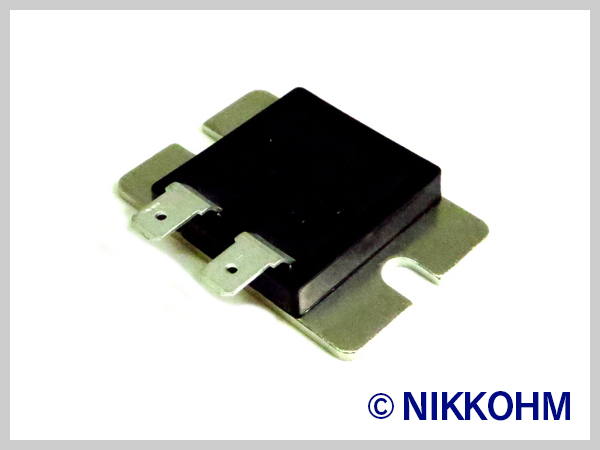

| RPL320F | --- | 300 | 0.1-51k | 5% |  |
|
|

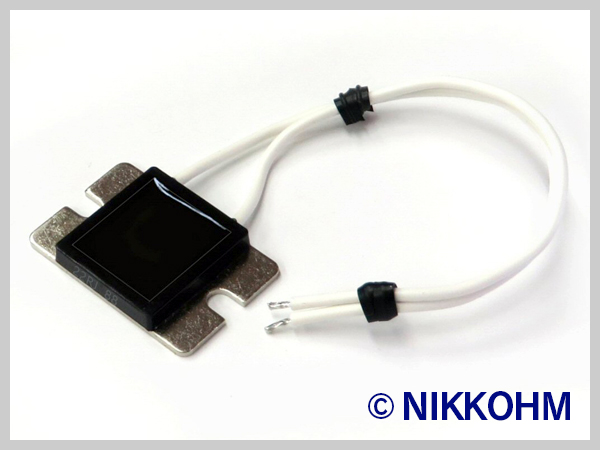

| RPL350 | --- | 300 | 0.1-51k | 5% |  |
|
|

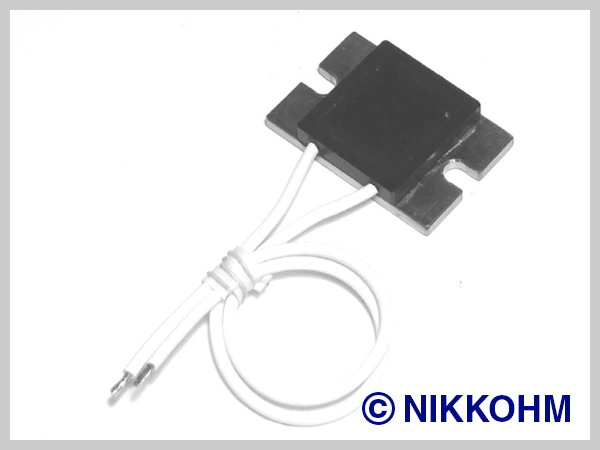

| RPL500 | --- | 500 | 0.1-51k | 5% |  |
|
|

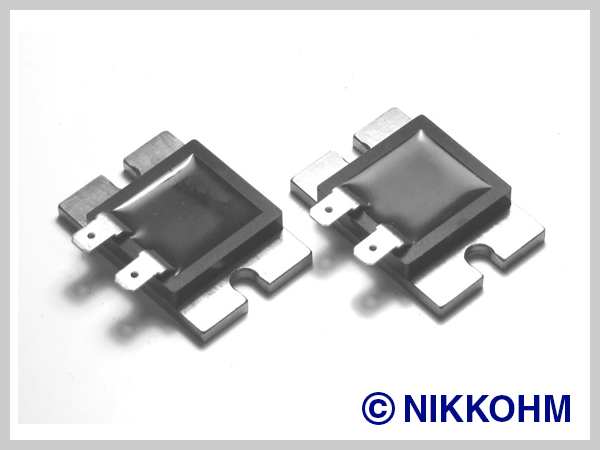

| RPL500F | --- | 500 | 0.1-51k | 5% |  |
|
|

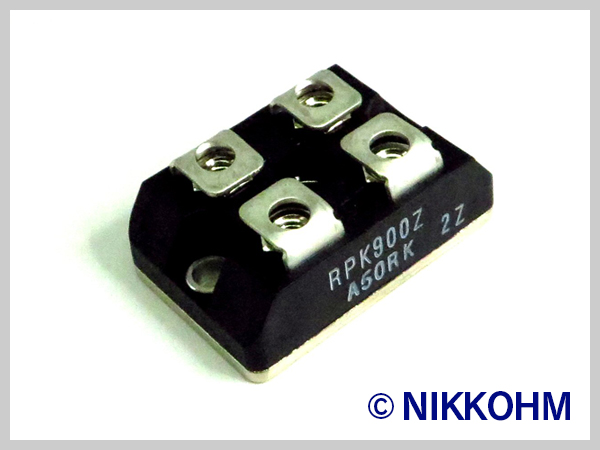

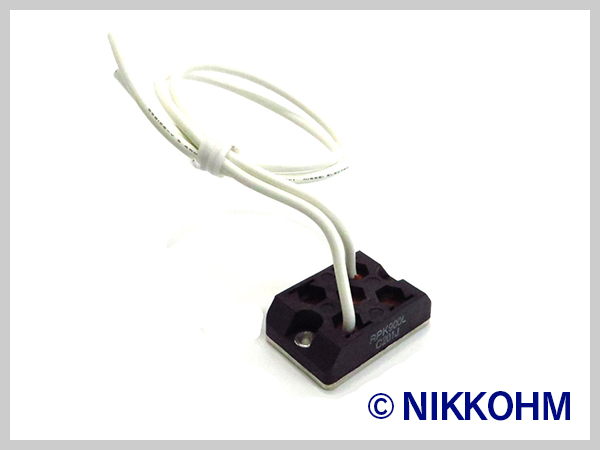

| RPK900 | SOT227 | 900 | 50-1k | 5% |  |
|
|

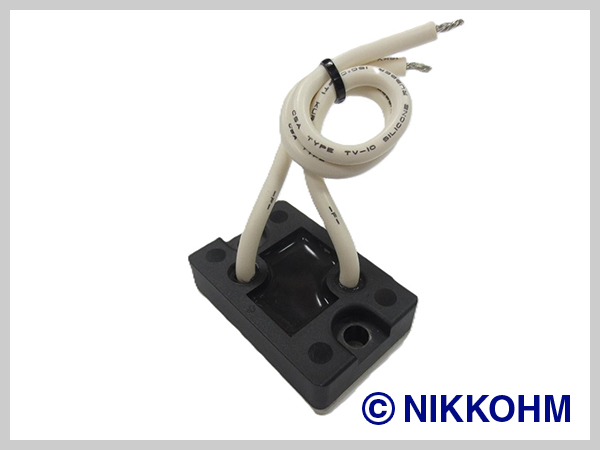

| RPK900L | SOT227 | 900 | 50-1k | 5% |  |
|
|

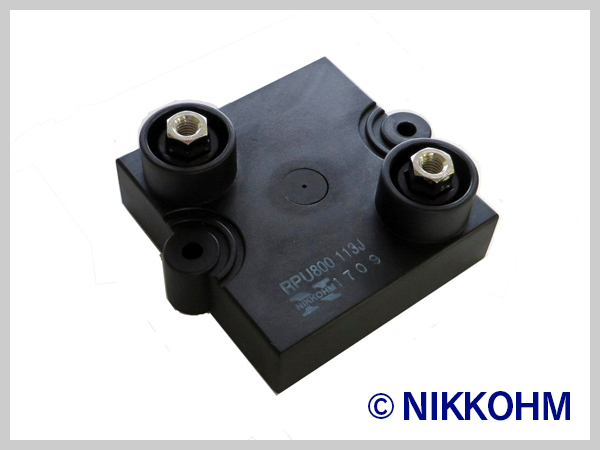

| RPU800 | FLAT | 800 | 0.5-1M | 5% |  |
|
|
| RPU1000 | FLAT | 1000 | 0.5-1M | 5% | |
|
|
| RPU2000 | FLAT | 2000 | 0.5-1M | 5% | |
|
Power Film
| Type | Style | Power (Watts) |
Res. Range (ohms) |
Tol.(%) | Photo | ||
|---|---|---|---|---|---|---|---|
| Power Film |

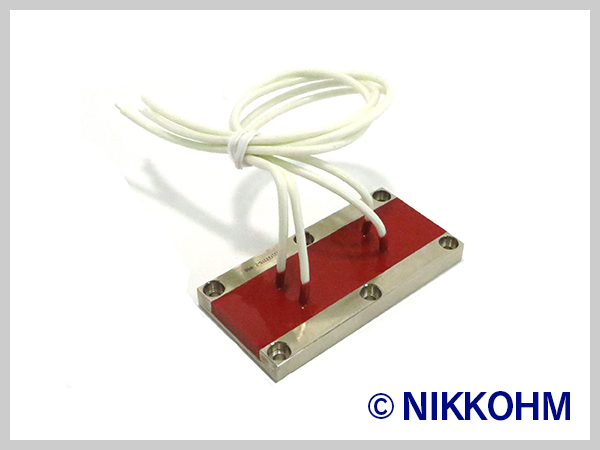

RPF100 | Screw M | 100 | 10-1k | 10% |  |
|
| RPF250 | Screw M | 250 | 10-1k | 10% | |
|
|

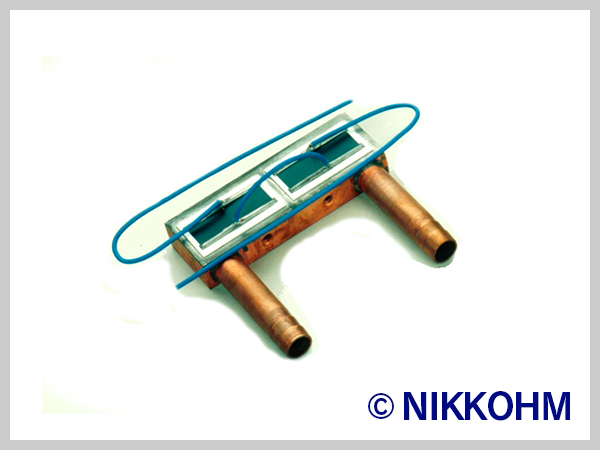

| RPH500 | Screw C | 500 | 10-1k | 10% |  |
|
巻線抵抗
Wire Wound, SMD
| Type | Style | Power (Watts) |
Res. Range (ohms) |

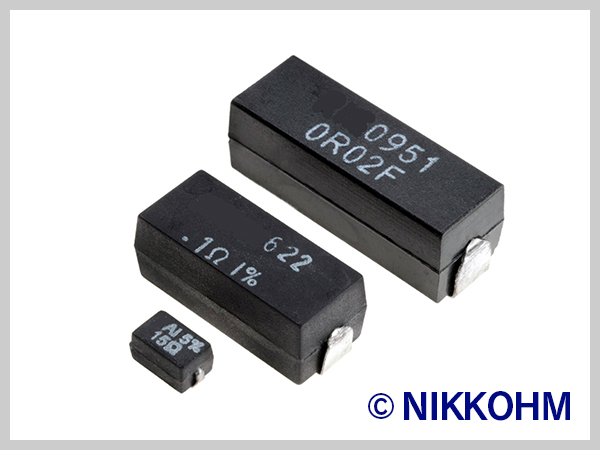

Tol.(%) | Photo | ||
|---|---|---|---|---|---|---|---|
| Wire Wound, SMD |
S | --- | 0.5~4 | 0.005~50K | 0.01, 0.05, 0.1, 1, 5 |
 |
|

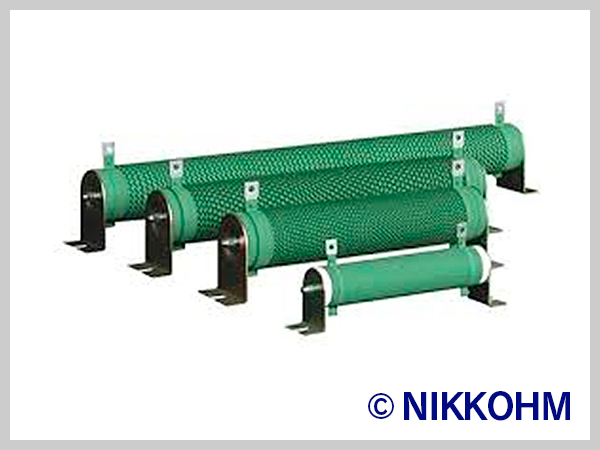

| Edgewound | NEW | --- | 75~2000 | 0.1~200 | 1,5,10 |  |
|
Axial Lead TH
| Type | Style | Power (Watts) |
Res. Range (ohms) |
Tol.(%) | Photo | ||
|---|---|---|---|---|---|---|---|
| Axial Lead TH | UT | --- | 1~15 | 0.02~320K | 0.1, 1, 5 |  |
|
Metal Clad
| Type | Style | Power (Watts) |
Res. Range (ohms) |
Tol.(%) | Photo | ||
|---|---|---|---|---|---|---|---|
| Metal Clad | UAL | --- | 5~50 | 0.01~250K | 0.05, 0.1, 0.25, 0.5, 1, 5 |
 |
|

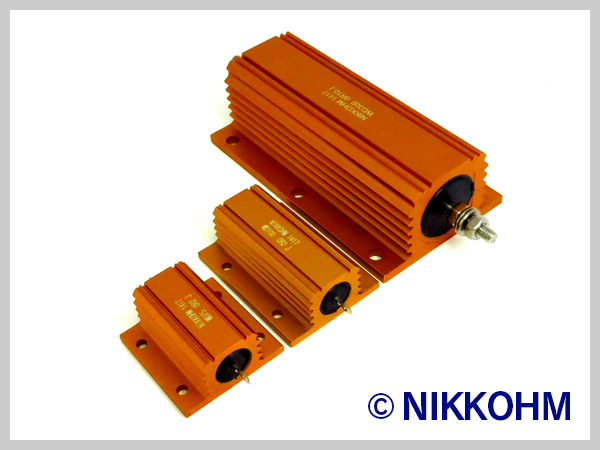

| WD | 75~150 | 0.01~100K | 0.25, 0.5, 1, 5 |  |
|
||

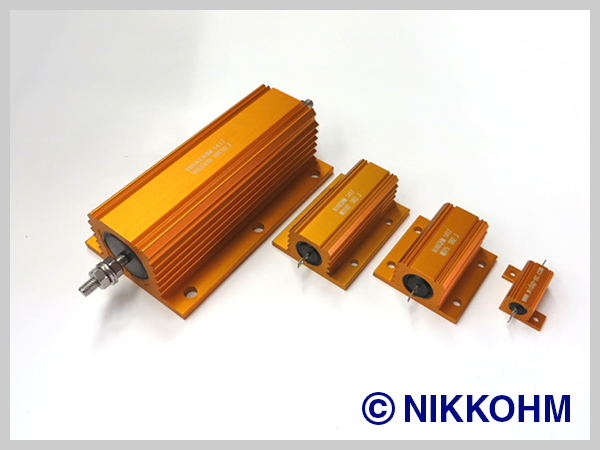

| HS | 5~300 | 0.005~100K | 0.25, 0.5, 1, 5 |  |
|
||

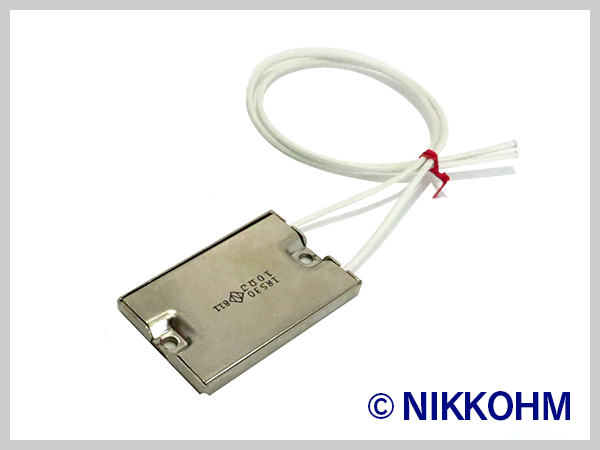

| IRS | 30~50 | 1~500 | 0.5, 1, 2, 5, 10 |  |
|

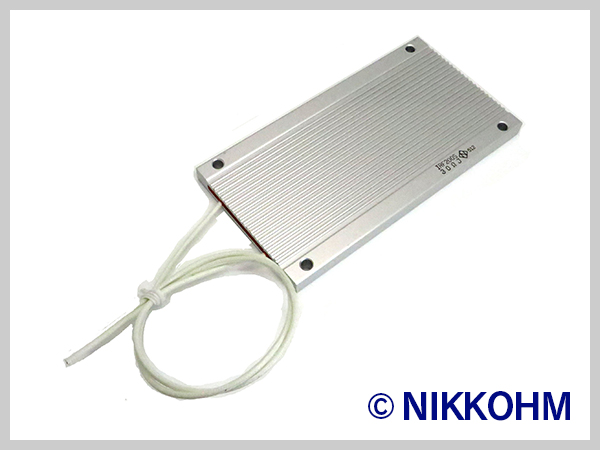

||
| IRN, ULN, IRF, ULF |
50~500 | 1~5.78K | 0.5, 1, 2, 5, 10 |  |
|
||
| IRH, ULH, IRV, ULV |

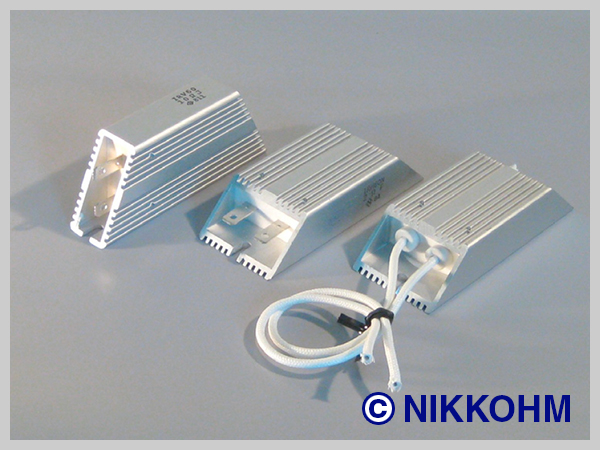

60~500 | 0.1~750K | 0.5, 1, 2, 5, 10 |  |
|
||

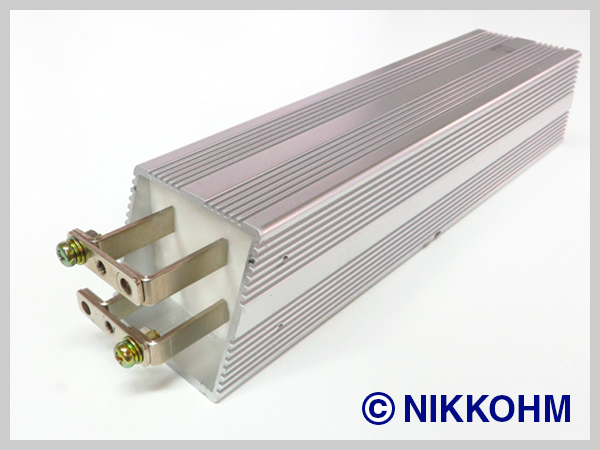

| IRV, ULV | 600~1200 | 0.1~160 | 1, 2, 5, 10 |  |
|

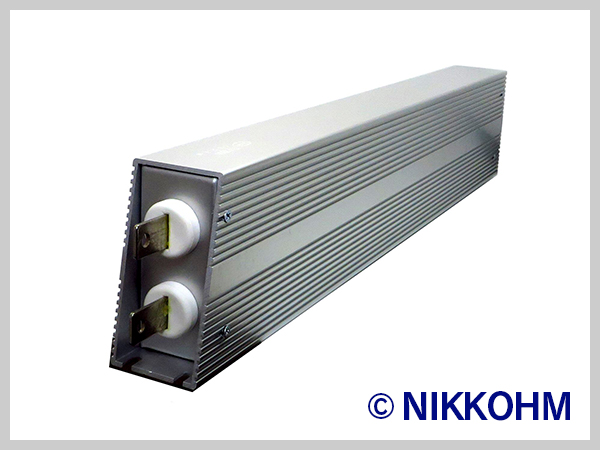

||
| IRM, ULM | 1600~2800 | 1.5~135 | 1, 5, 10 |  |
|
||

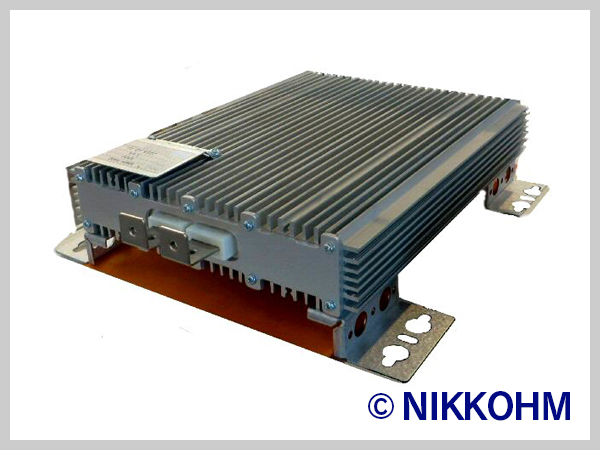

| MBH, MBV | 1100~2900 | 0.4~240 | 5, 10 |  |
|
金属板抵抗

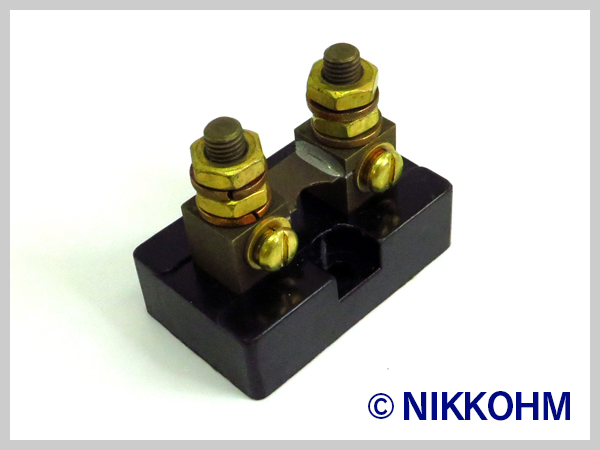

ブスバー電流シャント
| Type | Style | Power (Watts) |
Res. Range (ohms) |

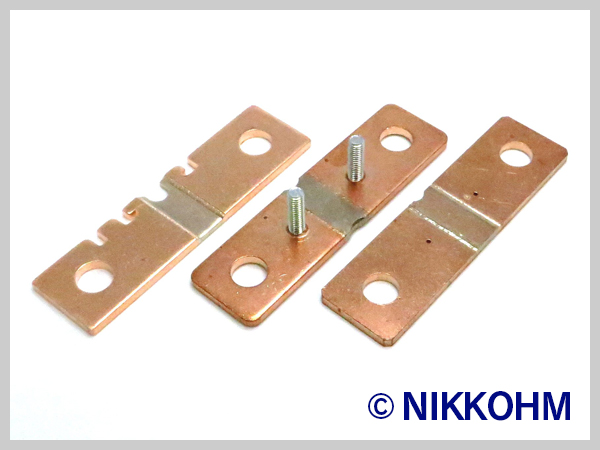

Tol.(%) | Photo | ||
|---|---|---|---|---|---|---|---|
| ブスバー 電流 シャント |
RCS551520 | --- | 3 | 0.05~0.1 | 1, 3, 5 |  |
|

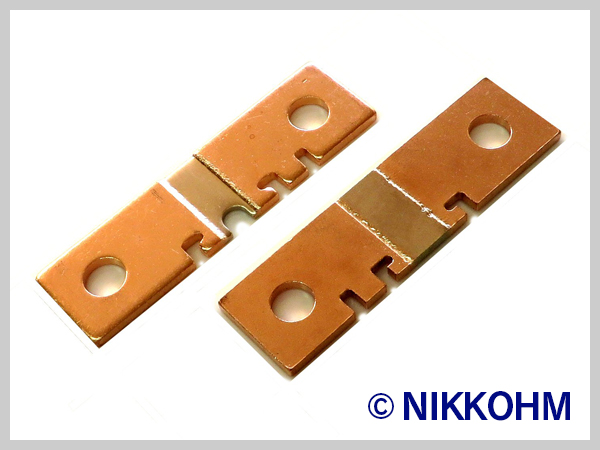

| RCS551525 | --- | 3 | 0.1~0.5 | 5 |  |
|
|

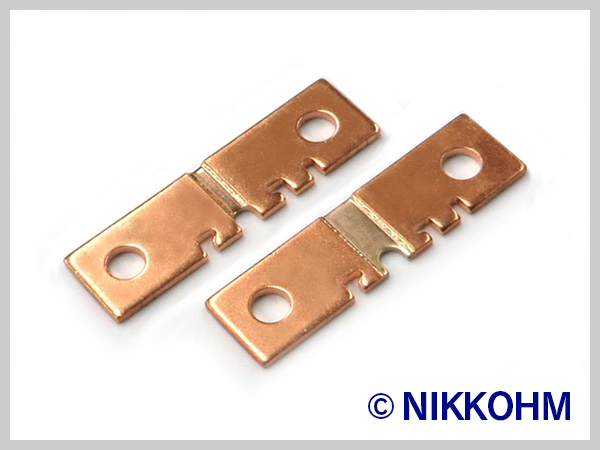

| RCS551527 | --- | 3 | 0.2 | 5 |  |
|
|

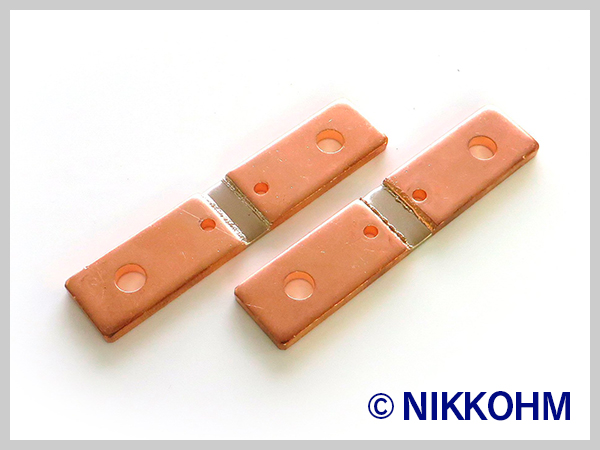

| RCS842030 | --- | 15 | 0.05~0.1 | 1, 3, 5 |  |
|
|

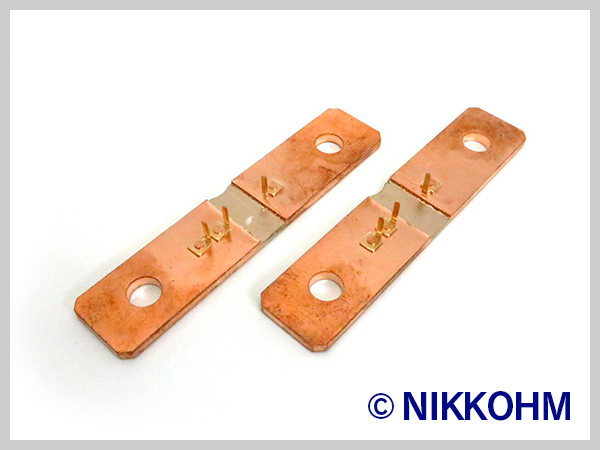

| RCS851840 | --- | 36 | 0.05~0.1 | 1, 3, 5 |  |
|
4端子
| Type | Style | Power (Watts) |
Res. Range (ohms) |
Tol.(%) | Photo | ||
|---|---|---|---|---|---|---|---|

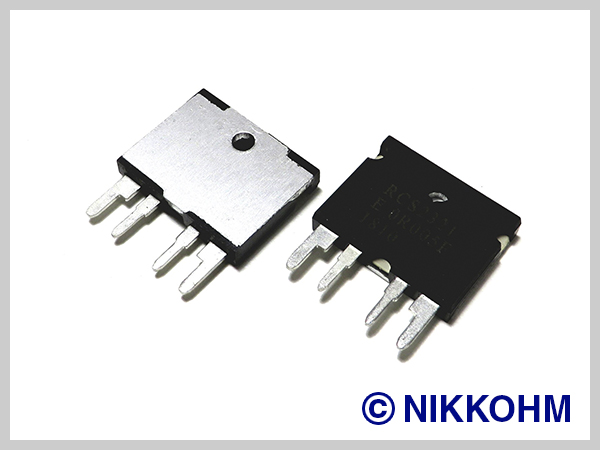

| 4端子 | RCS2321 | --- | 40 | 0.001 ~50 |
0.1, 0.5, 1, 2, 5 |  |
|

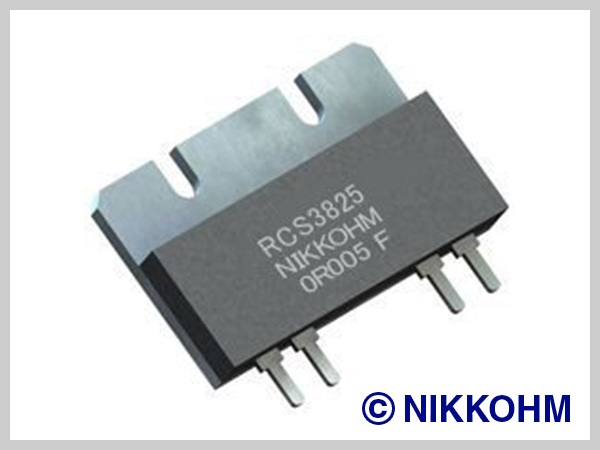

| RCS3825 | --- | 50 | 0.001 ~100 |
0.1, 0.5, 1, 5 |  |
|
高周波用
| Type | Style | Power (Watts) |
Res. Range (ohms) |
Tol.(%) | Photo | ||
|---|---|---|---|---|---|---|---|

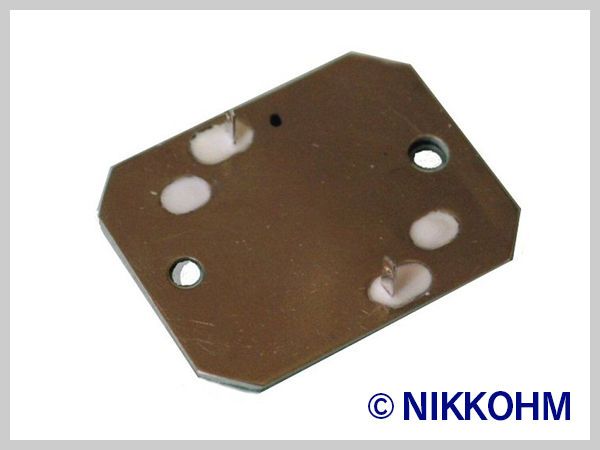

| 高周波用 | RAF30 | --- | 30 | 1~10 | 0.5, 1 |  |
|
軽量精密電流シャント
| Type | Style | Current (Amps) |
Voltage (mV) |
Tol.(%) | Photo | ||
|---|---|---|---|---|---|---|---|
| 軽量 精密電流 シャント |
NSLA10 | --- | 10 | 50 | 0.25 |  |
|
| NSLA20 | --- | 20 | 50 | 0.25 | |
|
|
| NSLA30 | --- | 30 | 50 | 0.25 | |
|
|
| NSLA50 | --- | 50 | 50 | 0.25 | |
|
|
| NSLA80 | --- | 80 | 50 | 0.25 | |
|
|
| NSLA100 | --- | 100 | 50 | 0.25 | |
|
|
| NSLA150 | --- | 150 | 50 | 0.25 | |
|
|

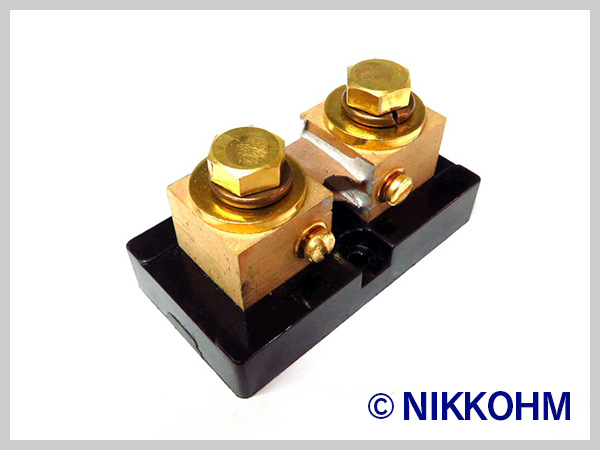

| NSLB170 | --- | 170 | 50 | 0.25 |  |
|
|
| NSLB200 | --- | 200 | 50 | 0.25 | |
|
|
| NSLB250 | --- | 250 | 50 | 0.25 | |
|
|
| NSLB300 | --- | 300 | 50 | 0.25 | |
|
|
| NSLB400 | --- | 400 | 50 | 0.25 | |
|
|
| NSLB450 | --- | 450 | 50 | 0.25 | |
|
|
| NSLB500 | --- | 500 | 50 | 0.25 | |
|
|
| NSLB600 | --- | 600 | 50 | 0.25 | |
|
|

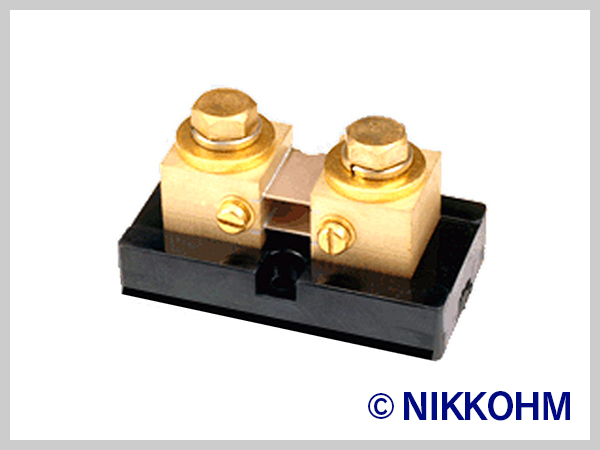

| NSLC800 | --- | 800 | 50 | 0.25 |  |
|
|
| NSLC1000 | --- | 1000 | 50 | 0.25 | |
|
|
| NSLC1200 | --- | 1200 | 50 | 0.25 | |
|
精密電流シャント
| Type | Style | Current (Amps) |
Voltage (mV) |
Tol.(%) | Photo | ||
|---|---|---|---|---|---|---|---|
| 精密電流 シャント |
NSA50 | --- | 50 | 50 | 0.25 |  |
|
| NSA100 | --- | 100 | 50 | 0.25 | |
|
|
| NSA150 | --- | 150 | 50 | 0.25 | |
|
|
| NSA200 | --- | 200 | 50 | 0.25 | |
|
|
| NSA250 | --- | 250 | 50 | 0.25 | |
|
|
| NSA300 | --- | 300 | 50 | 0.25 | |
|
|
| NSA400 | --- | 400 | 50 | 0.25 | |
|
|
| NSA500 | --- | 500 | 50 | 0.25 | |
|
|
| NSA600 | --- | 600 | 50 | 0.25 | |
|
|
| NSB300 | --- | 300 | 50 | 0.25 |  |
|
|
| NSB400 | --- | 400 | 50 | 0.25 | |
|
|
| NSB500 | --- | 500 | 50 | 0.25 | |
|
|
| NSB600 | --- | 600 | 50 | 0.25 | |
|
|
| NSB800 | --- | 800 | 50 | 0.25 | |
|
|
| NSB1000 | --- | 1000 | 50 | 0.25 | |
|
|
| NSB1200 | --- | 1200 | 50 | 0.25 | |
|
|
| NSE1500 | --- | 1500 | 50 | 0.25 |  |
|
|
| NSE2000 | --- | 2000 | 50 | 0.25 | |
|
|
| NSF3000 | --- | 7500 | 50 / 100 | 0.25 |  |
|
|
| NSF5000 | --- | 5000 | 50 / 100 | 0.25 | |
|
|
| NSF10000 | --- | 10000 | 50 / 100 | 0.25 | |
|
精密抵抗
薄膜角板形金属皮膜抵抗器
| Type | Style | Power (Watts) |
Res. Range (ohms) |
Tol.(%) | Photo | ||
|---|---|---|---|---|---|---|---|
| 薄膜角板形 金属皮膜 抵抗器 |
RP-84 | リード付 | 0.125 | 10~750K | 0.1 |  |
|

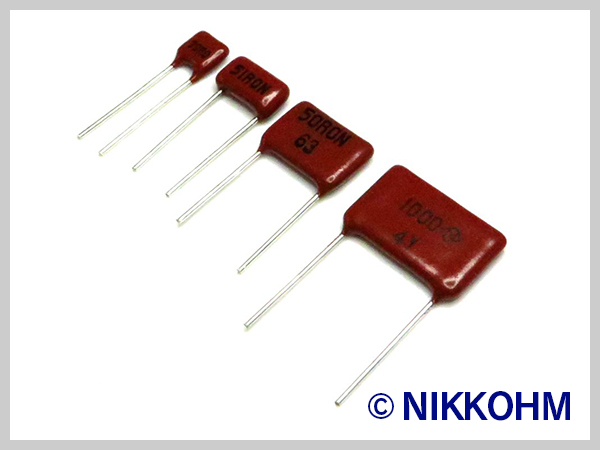

| RP-44 | リード付 | 0.25 | 10~750K | 0.1 | |
|
|
| RP-24 | リード付 | 0.5 | 10~750K | 0.1 | |
|
|
| RP-14 | リード付 | 1 | 10~750K | 0.1 | |
|
薄膜精密抵抗器
| Type | Style | Power (Watts) | Res. Range (ohms) |
Tol.(%) | Photo | ||
|---|---|---|---|---|---|---|---|
| 薄膜 精密 抵抗器 |

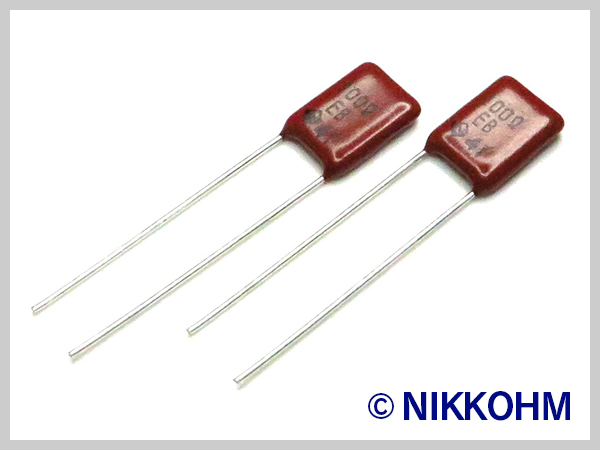

RP-45 | リード付 | 0.25 | 10~1M | 0.01, 0.02, 0.05, 0.1, 0.25 |  |
|

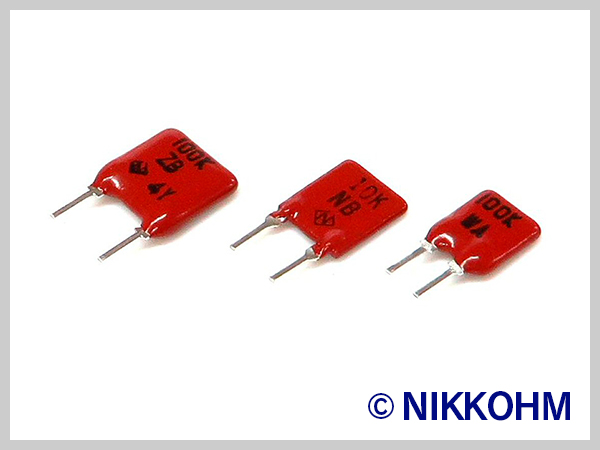

| RP-46 | リード付 | 0.25 | 10~1M | 0.01, 0.02, 0.05, 0.1, 0.25 | |
|
|
| RP-47 | リード付 | 0.25 | 10~1M | 0.01, 0.02, 0.05, 0.1, 0.25 | |
|
|
| RP-48 | リード付 | 0.25 | 10~1M | 0.01, 0.02, 0.05, 0.1, 0.25 | |
|
|
| RP-41 | リード付 | 0.25 | 10~1M | 0.01, 0.02, 0.05, 0.1, 0.25 |  |
|
|
| R1206 | CHIP | 0.25 | 25~50K | 0.05 |  |
|
|
| R1210 | CHIP | 0.25 | 25~50K | 0.05 | |
|
|
| R2010 | CHIP | 0.5 | 25~50K | 0.05 | |
|
|

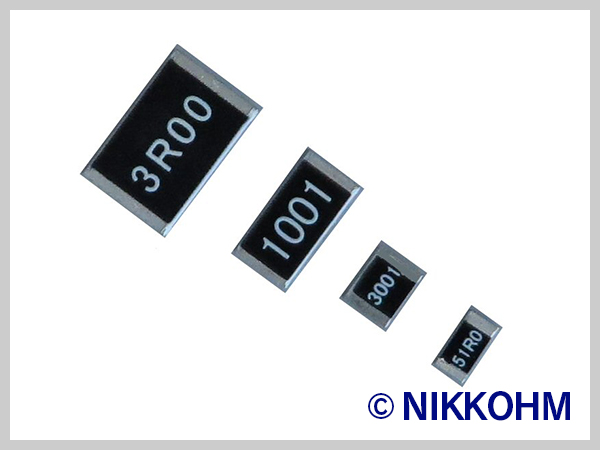

| R2512 | CHIP | 1 | 25~50K | 0.05 | |
|
|
| R3020 | CHIP | 2 | 25~50K | 0.05 | |
|
|

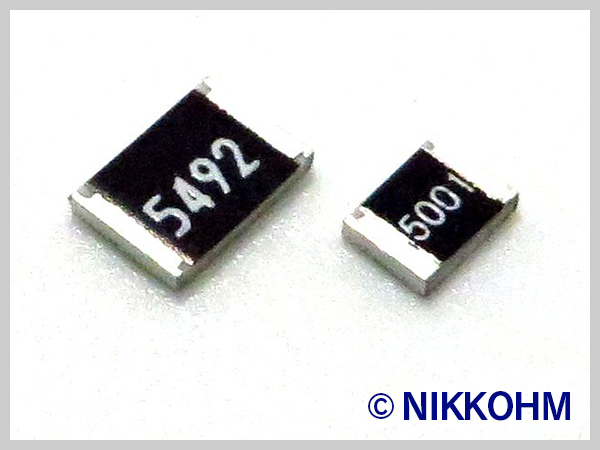

| NQA18 | CHIP | 0.125 | 10~33K | 0.05 |  |
|
|
| NQA14 | CHIP | 0.25 | 10~62K | 0.05 | |
|
|
| RPC14 | CHIP | 0.25 | 100~51K | 0.1, 1 |  |
|
|
| RPC12 | CHIP | 0.5 | 100~51K | 0.1, 1 | |
|
|
| RPC11 | CHIP | 1 | 100~100K | 0.1, 1 | |
|
|
| RPC21 | CHIP | 2 | 100~100K | 0.1, 1 | |
|
ネットワーク抵抗器
| Type | Style | Power (Watts) |
Res. Range (ohms) |
Tol.(%) | Photo | ||
|---|---|---|---|---|---|---|---|
| ネットワーク 抵抗器 |

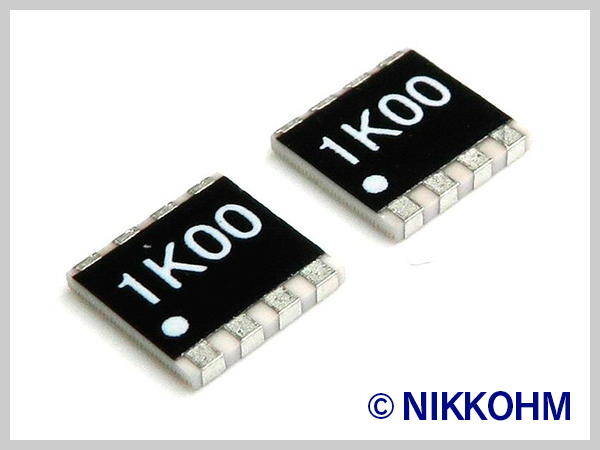

MCM4 | SIP | 0.5 | 100~22K | 0.01, 0.02, 0.05, 0.1 |  |
|
| MCM8 | SIP | 0.5 | 100~22K | 0.01, 0.02, 0.05, 0.1 | |
|
|
| MCM16 | SIP | 0.5 | 100~22K | 0.01, 0.02, 0.05, 0.1 | |
|
|

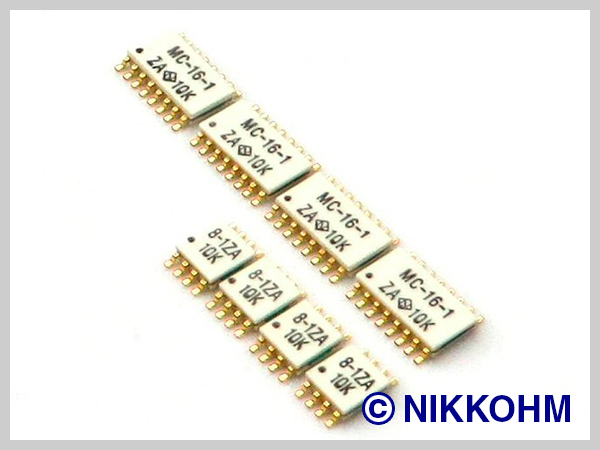

| MC8 | SIP | 0.4 | 100~22K | 0.05, 0.1 |  |
|
|
| MC16 | SIP | 0.5 | 100~22K | 0.05, 0.1 | |
|
|
| 2T | SIP | 0.125 | 1K~60K | 0.05 |  |
|
|

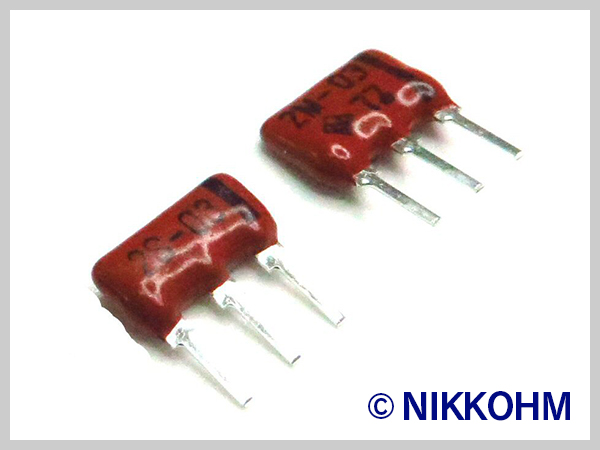

| 2S | SIP | 0.125 | 1K~60K | 0.1 | |
|
|
| MP | SIP | 0.125 | 100~20K | 0.1 | |
|
マイクロ波
表面実装終端器
| Type | Style | Power (Watts) |
Res. Range (ohms) |
Tol.(%) | Photo | ||
|---|---|---|---|---|---|---|---|
| 表面実装 終端器 |

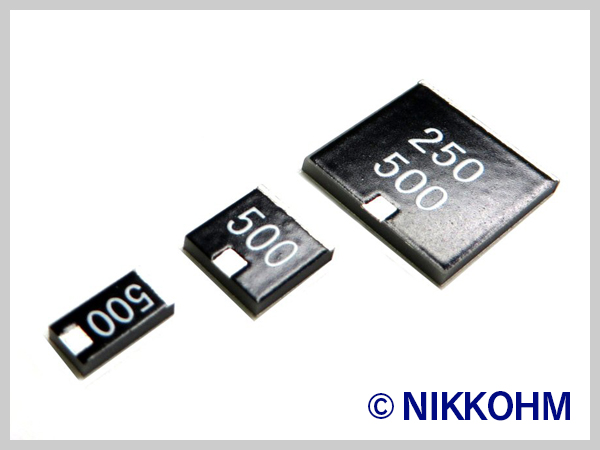

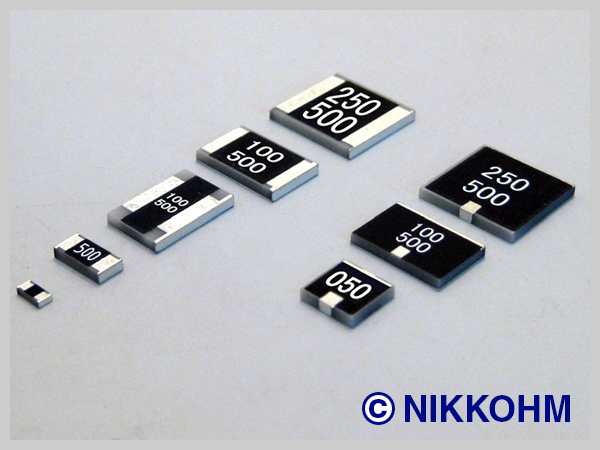

RFT005010 | SMD | 5 | 50 | 1 |  |
|
| RFT005020 | SMD | 5 | 50 | 1 | |
|
|
| RFT010010 | SMD | 10 | 50 | 1 | |
|
|
| RFT010020 | SMD | 10 | 50 | 1 | |
|
|
| RFT050010 | SMD | 50 | 50 | 1 | |
|
|
| RFT050020 | SMD | 50 | 50 | 1 | |
|
|
| RFT100010 | SMD | 100 | 50 | 1 | |
|
|
| RFT100020 | SMD | 100 | 50 | 1 | |
|
|
| RFT150010 | SMD | 150 | 50 | 1 | |
|
|
| RFT150020 | SMD | 150 | 50 | 1 | |
|
|
| RFT250010 | SMD | 250 | 50 | 1 | |
|
|
| RFT250020 | SMD | 250 | 50 | 1 | |
|
|

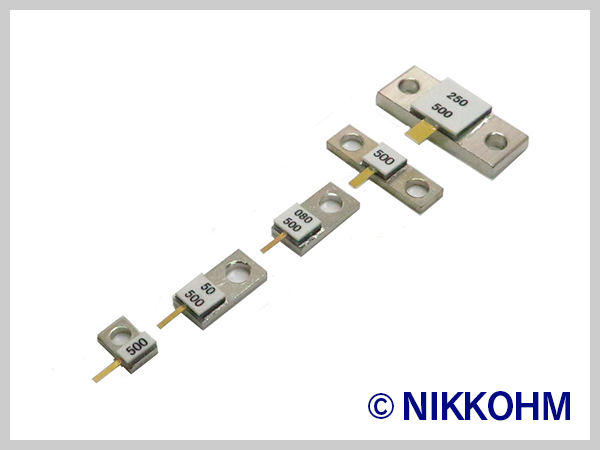

| RFT010120 | フランジ | 10 | 50 | 1 |  |
|
|
| RFT010130 | フランジ | 10 | 50 | 1 | |
|
|
| RFT050110 | フランジ | 50 | 50 | 1 | |
|
|
| RFT050120 | フランジ | 50 | 50 | 1 | |
|
|
| RFT050130 | フランジ | 50 | 50 | 1 | |
|
|
| RFT050140 | フランジ | 50 | 50 | 1 | |
|
|
| RFT100110 | フランジ | 100 | 50 | 1 | |
|
|
| RFT150110 | フランジ | 150 | 50 | 1 | |
|
|
| RFT250110 | フランジ | 250 | 50 | 1 | |
|
|

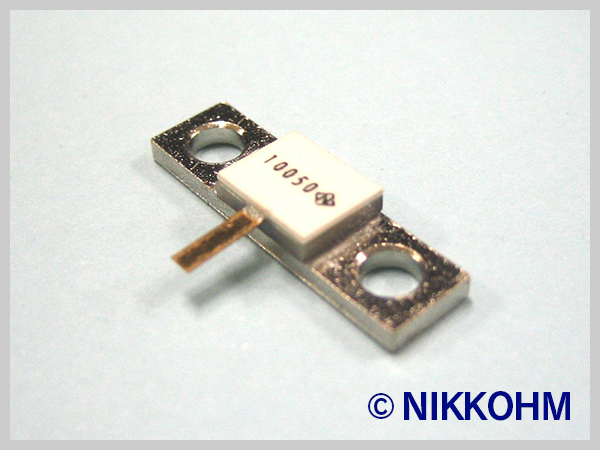

| RFTF100 | フランジ | 100 | 50 | 1 |  |
|
|

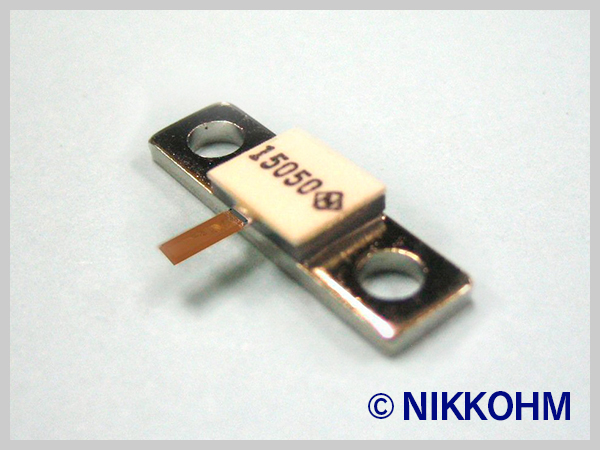

| RFTF150 | フランジ | 150 | 50 | 1 |  |
|
高周波用電力抵抗器
| Type | Style | Power (Watts) |
Res. Range (ohms) |
Tol.(%) | Photo | ||
|---|---|---|---|---|---|---|---|
| 高周波用 電力抵抗器 |

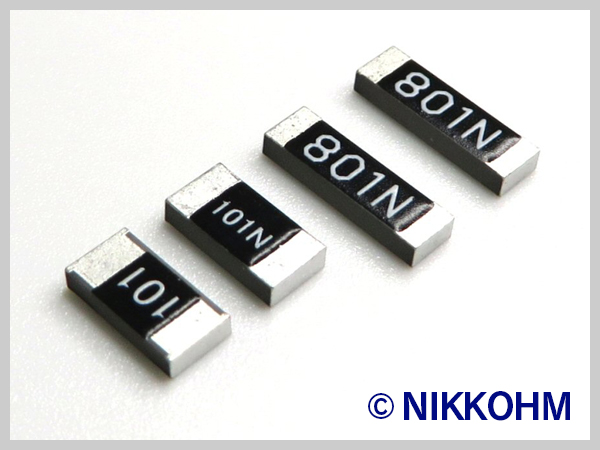

RFH52 | CHIP | 10 | 50~800 | 1 |  |
|
| RFH72 | CHIP | 10 | 50~800 | 1 | |
|
|
| RFK52 | CHIP | 20 | 50~800 | 1 | |
|
|
| RFK72 | CHIP | 20 | 50~800 | 1 | |
|
|

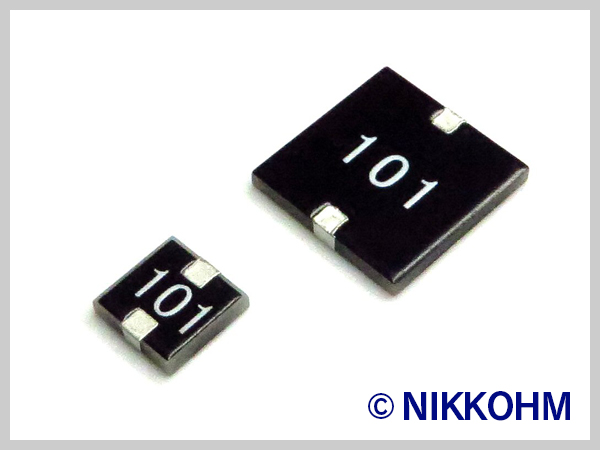

| RFR010010 | CHIP | 10 | 50~800 | 1 |  |
|
|
| RFR010020 | CHIP | 10 | 50~800 | 1 | |
|
|
| RFR050010 | CHIP | 50 | 50~800 | 1 | |
|
|
| RFR050020 | CHIP | 50 | 50~800 | 1 | |
|
|
| RFR100010 | CHIP | 100 | 50~800 | 1 | |
|
|
| RFR100020 | CHIP | 100 | 50~800 | 1 | |
|
|
| RFR150010 | CHIP | 150 | 50~800 | 1 | |
|
|
| RFR150020 | CHIP | 150 | 50~800 | 1 | |
|
|
| RFR250010 | CHIP | 250 | 50~800 | 1 | |
|
|
| RFR250020 | CHIP | 250 | 50~800 | 1 | |
|
|

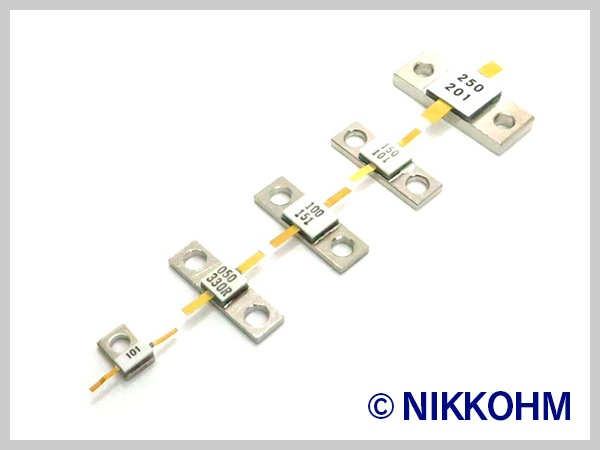

| RFR010120 | フランジ | 10 | 50~800 | 1 |  |
|
|
| RFR050110 | フランジ | 50 | 50~800 | 1 |
|
|
|
| RFR050120 | フランジ | 50 | 50~800 | 1 |
|
|
|
| RFR100110 | フランジ | 100 | 50~800 | 1 |
|
|
|
| RFR150110 | フランジ | 150 | 50~800 | 1 |
|
|
|
| RFR250110 | フランジ | 250 | 50~800 | 1 |
|
|
|
| RFRF100 | フランジ | 100 | 50~800 | 1 | |
|
|
| RFRF150 | フランジ | 150 | 50~800 | 1 | |
|
減衰器
| Type | Style | Power (Watts) |
減衰量 (dB) |
Tol.(%) | Photo | ||
|---|---|---|---|---|---|---|---|

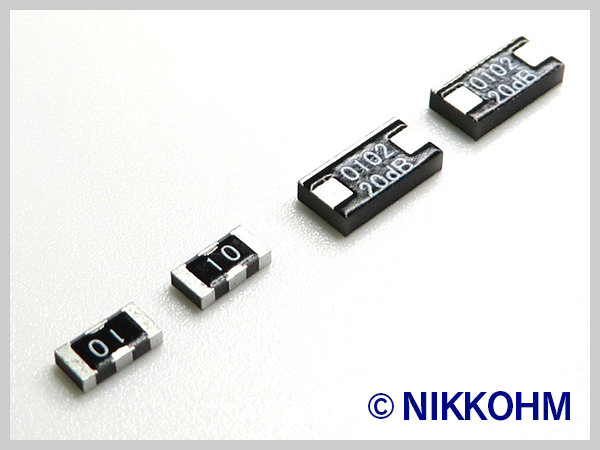

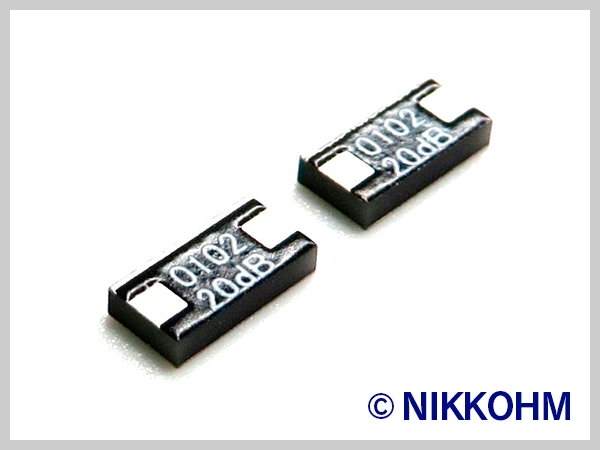

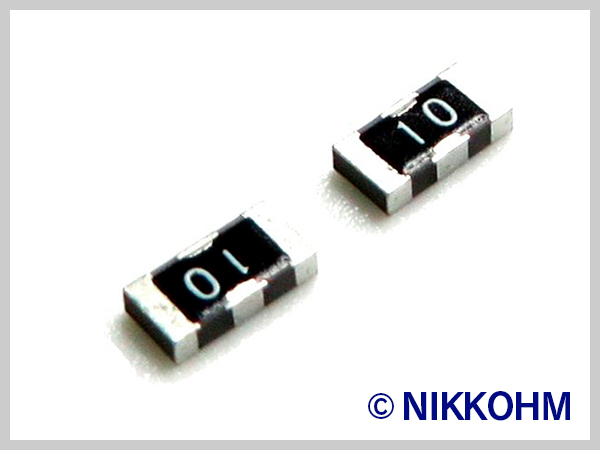

| 減衰器 | RFA1206 | CHIP | 10 | 6, 8, 10, 20 | - |  |
|
| RFA001010 | CHIP | 1 | 0~40 | - |  |
|
|
| RFA010010 | CHIP | 10 | 10, 20, 30 | - |  |
|
|
| RFA020010 | CHIP | 20 | 10, 20, 30 | - | |
|
|
| RFA040010 | CHIP | 40 | 10, 20, 30 | - | |
|
|
| RFA100030 | CHIP | 100 | 10, 20, 30 | - | |
|
|
| RFA150030 | CHIP | 150 | 10, 20, 30 | - | |
|
|

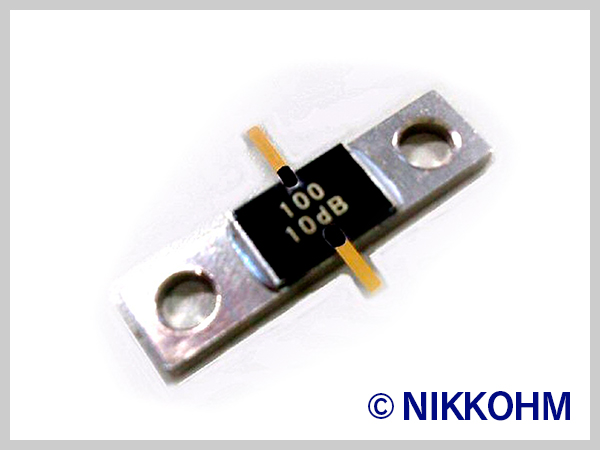

| RFA100110 | フランジ | 100 | 3, 6, 10, 20, 30 | - |  |
|
|

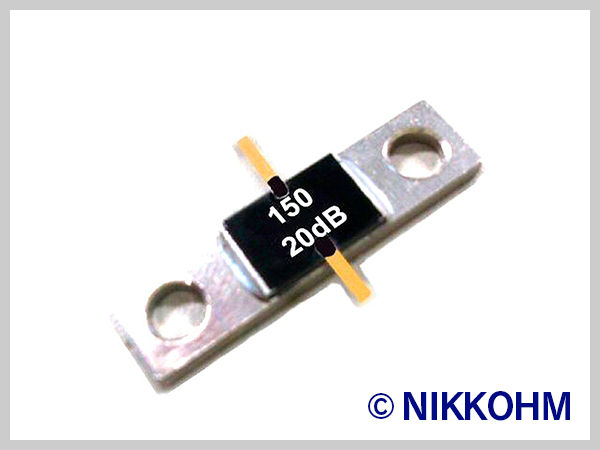

| RFA150110 | フランジ | 150 | 3, 6, 10, 20, 30 | - |  |
|
|
| RFA-54 | 同軸用 | 0.25 | 2~20 | - |  |
|
|
| RFA-85 | 同軸用 | 0.5 | 2~20 | - | |
|
|
| RFA-67 | 同軸用 | 1 | 2~20 | - | |
|
|

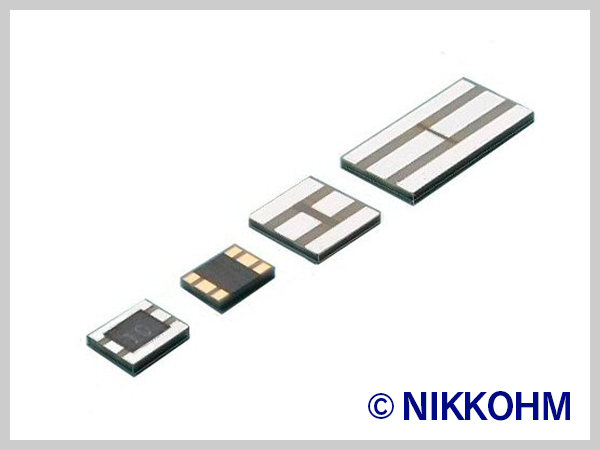

| RFA-37 | 同軸用 | 1 | 2~20 | - | |
|
|

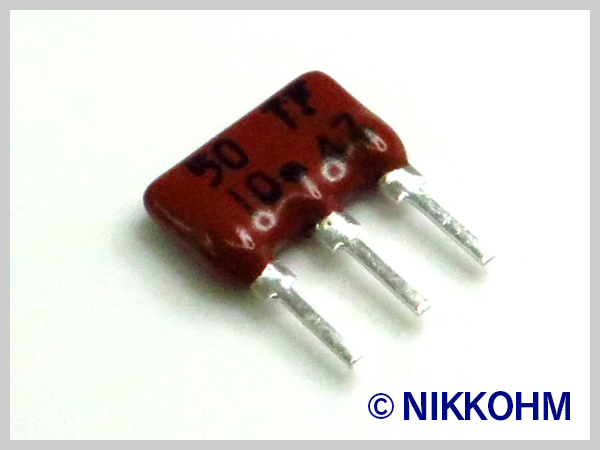

| RFA-50TF | SIP | 0.25 | 2~32 | 1 |  |
|
|
| RFA-75TF | SIP | 0.25 | 2~30 | 1 | |
|
|
| RFA-300TF | SIP | 0.25 | 2~30 | 1 | |
|
|
| RFA-600TF | SIP | 0.25 | 2~30 | 1 | |
|
|
| RFA-50TF | SIP | 0.5 | 2~32 | 1 | |
|
|
| RFA-75TF | SIP | 0.5 | 2~30 | 1 | |
|
|
| RFA-300TF | SIP | 0.5 | 2~30 | 1 | |
|
|
| RFA-600TF | SIP | 0.5 | 2~30 | 1 | |
|
熱センサ
RMS-DCコンバータ
| Type | Style | Power (Watts) |
Res. Range (ohms) |
Tol.(%) | Photo | ||
|---|---|---|---|---|---|---|---|

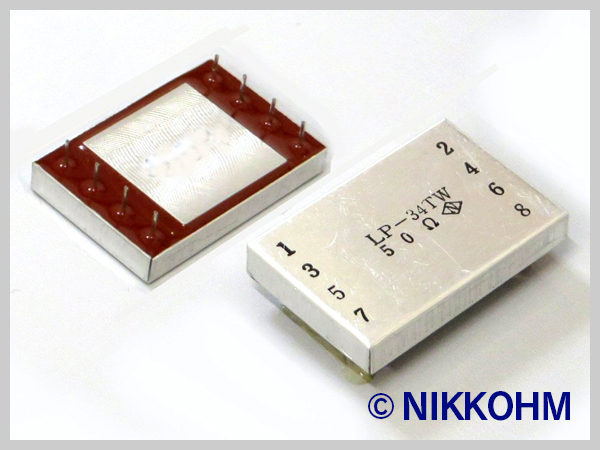

| RMS-DC コンバータ |

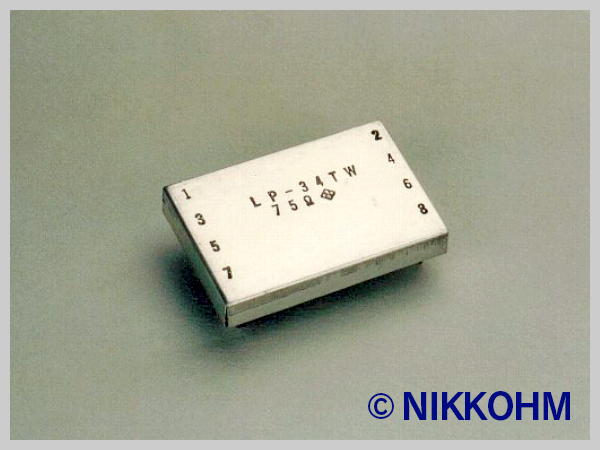

LP-34B | --- | 10m | 50, 75 | 10 |  |
|
| LP-34TW | --- | 10m | 50, 75 | 10 |  |
|
|

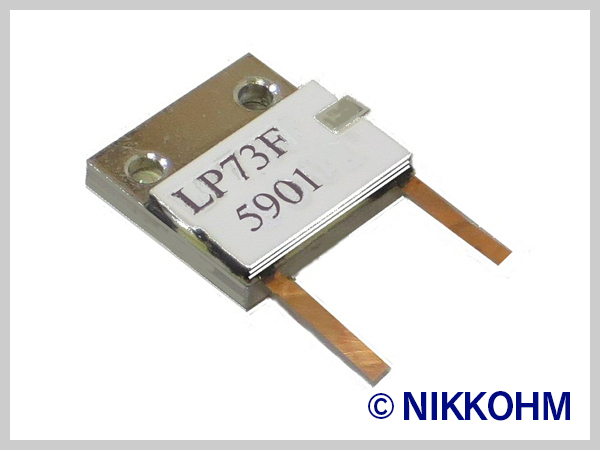

| LP-73F | --- | 10m | 50, 75 | 10 |  |
|
交直変換素子とAC-DC標準
| Type | Style | Power (Watts) |
Res. Range (ohms) |
Tol.(%) | Photo | ||
|---|---|---|---|---|---|---|---|
| 交直 変換素子と AC-DC 標準 |
JSTC04 | --- | 100m | 100, 200, 500, 1K, 2K | 10 |  |
|
| JSTC05 | --- | 100m | 100 | 10 |  |
|
|
| JSTC06 | --- | 100m | 100, 200, 500, 1K, 2K | 10 |  |
|
|
| TVC04 | --- | 100m | 100, 200, 500, 1K, 2K | 10 |  |
|
|
| TVC05 | --- | 100m | 100, 200, 500, 1K, 2K | 10 |  |
|
|
| TVC06 | --- | 100m | 100, 200, 500, 1K, 2K | 10 |  |
|
|
| TVCC | --- | --- | --- | --- |  |
|
レーザパワーセンサ
| Type | Style | Power (Watts) |
Res. Range (ohms) |
Tol.(%) | Photo | ||
|---|---|---|---|---|---|---|---|
| レーザ パワーセンサー |

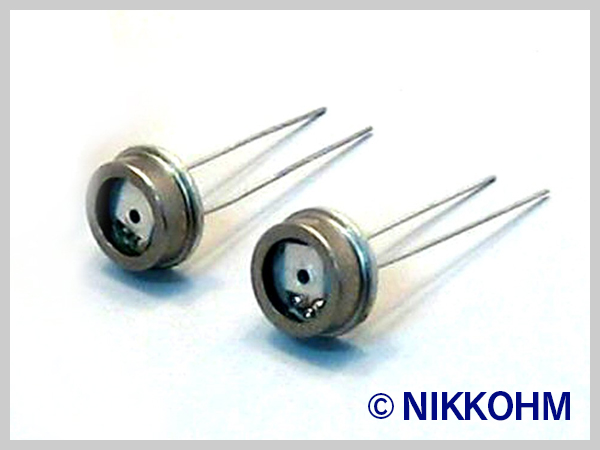

LP-111S | --- | 10m | --- | --- |  |
|
| LP-123 | --- | 10m | --- | --- | |
|
